1995 Dodge Ram 2500 5.9L L6 Diesel

- Designed to increase horsepower
- Washable, reusable, and engineered to last for the life of your vehicle
- Designed to provide high airflow and exceptional filtration
- Engineered to fit easily into your factory air box
- 10-Year/Million Mile Limited Warranty
- Only needs cleaning every 50,000 miles under normal highway driving conditions
- Emissions legal in all 50 States
- Will not void vehicle warranty
Air Filter Shape | Panel |
Filter Material | Cotton Gauze |
Washable | Yes |
Height | 1.75 in (44 mm) |
Outside Length | 11.875 in (302 mm) |
Outside Width | 10.75 in (273 mm) |
Package Contents | 1 Air Filter |
Package Quantity | 1 |
Warranty | 1,000,000 Miles/10 Year |
Product Style | Panel Air Filter |
Top Style | Open |
Weight | 2.4 lb (1.1 kg) |
Filter Re-Oiling Amount | 3.55 oz (105 ml) |
Product Box Height | 2.34 in (60 mm) |
Product Box Length | 15.06 in (383 mm) |
Product Box Width | 11.06 in (281 mm) |
Inner Wire | No |
Advanced Moderate Easy
Screwdriver
5-10 Minutes

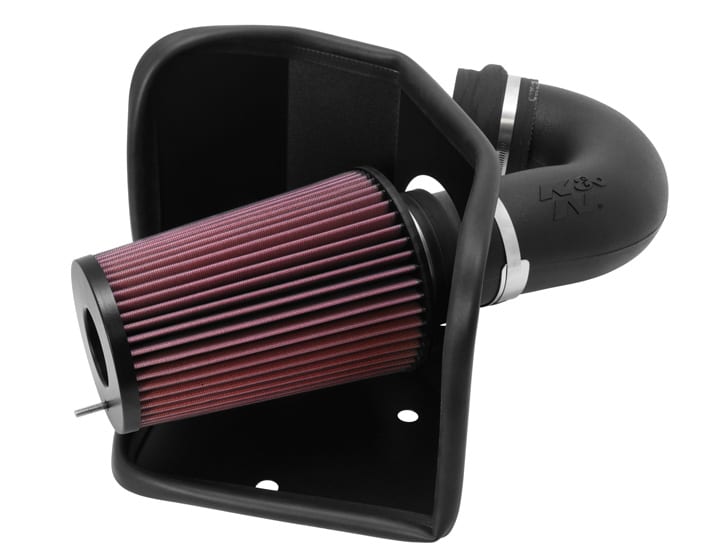

- Guaranteed to increase horsepower and torque
- Roto-molded HDPE intake tube paired with oversized oiled cotton air filter
- Engineered to provide high airflow and exceptional filtration
- Replaces factory air filter and intake tube
- Filter only requires cleaning every 100,000 miles under normal highway driving conditions
- Typical installation can be completed in 90 minutes or less with simple hand tools
- 10-Year/Million Mile Limited Warranty™
- Will not void vehicle warranty
Estimated Horsepower Gain | 9.17 HP @ 2560 RPM |
Replacement Filter | RC-4780 |
Air Filter Color | Red |
Air Filter Material | Cotton Gauze |
Air Filter Outlet Shape | Round |
Clamps Included | 4 |
Clamp Material | Stainless Steel |
Clamp Style | Regular |
CARB EO Number | D-269-22 |
Couplers Included | 1 |
Type | Gen II |
Product Style | 57 Series FIPK |
Air Filter Height | 9.5 in (241 mm) |
Intake Pipe Color / Finish | Black |
Intake Pipe Material | High-Density Cross-Linked Polyethylene |
Street Legal In All US States | Yes |
TUV Approved (Europe) | No |
Weight | 12.3 lb (5.6 kg) |
Air Filter Large End Diameter | 6.625 in (168 mm) |
Product Box Height | 12.25 in (311 mm) |
Product Box Length | 20.25 in (514 mm) |
Product Box Width | 12.25 in (311 mm) |
Mounting Hardware Included | Yes |
Warranty | 1,000,000 Miles/10 Year |
Advanced Moderate Easy
Wrench, Extension, Flat Blade Screwdriver, Allen Wrench
60-90 Minutes
Installation PDF
Installation Instruction Sheet Dyno Chart - 1995 Dodge Ram 2500 5.9L - 9.17HP Increase
- Designed to allow high flow rates and a consistent flow of oil to your engine
- Pleated synthetic-blend filtration media removes most harmful contaminants
- Fast and easy Wrench-Off® removal using the welded one-inch hex nut
- High capacity to withstand the service intervals recommended by vehicle manufacturers
- Heavy-duty canister for outstanding durability
- Laboratory tested to ensure excellent capacity, efficiency, and mechanical strength
- Designed to operate with all synthetic, conventional, and blended motor oils
- 1-Year Limited Warranty
Anti Drain Back Valve | No |
Bypass Valve | No |
Filter Material | High Flow Premium Media |
Gasket Material | Viton Rubber |
Height | 7.188 in (183 mm) |
Outside Diameter | 3.656 in (93 mm) |
PSI Relief Valve | None |
Removal Nut | Yes |
Style | Canister |
Thread Specification | 1 In - 16UN-2B |
Product Style | Oil Filters |
Weight | 1.5 lb (0.7 kg) |
Product Box Height | 7.7 in (196 mm) |
Product Box Length | 3.9 in (99 mm) |
Product Box Width | 3.8 in (97 mm) |
Removal Nut Size | 1 inch |
Warranty | 1 Year Limited |
Advanced Moderate Easy
20-30 Minutes

- High flow filter designed to improve performance
- Designed for synthetic and conventional oils
- Premium filtration media for increased capacity
- Provides outstanding filtration
Anti Drain Back Valve | No |
Bypass Valve | No |
Filter Material | High Flow Premium Media |
Gasket Material | Nitrile Rubber |
Height | 6.719 in (171 mm) |
Outside Diameter | 3.656 in (93 mm) |
PSI Relief Valve | None |
Removal Nut | No |
Style | Canister |
Thread Specification | 1 In - 16UN-2B |
Product Style | Oil Filters |
Weight | 1.5 lb (0.7 kg) |
Product Box Height | 6.8 in (173 mm) |
Product Box Length | 3.9 in (99 mm) |
Product Box Width | 3.9 in (99 mm) |
Warranty | 1 Year Limited |
Advanced Moderate Easy
20-30 Minutes

- Lasts the lifetime of your vehicle under normal vehicle operating conditions
- Stainless Steel Micro-Screen Filtration
- Reusable Oil Filter
- Billet Aluminum Housing
- Embedded Neodymium Magnets
Anti Drain Back Valve | No |
Bypass Valve | Yes |
Filter Material | Stainless Mesh |
Gasket Material | Viton |
Height | 6.25 in (159 mm) |
Outside Diameter | 3 in (76 mm) |
PSI Relief Valve | 16 |
Removal Nut | No |
Style | Canister |
Thread Specification | 1 In - 16UN-2B |
Product Style | Oil Filters |
Weight | 1.6 lb (0.7 kg) |
Product Box Height | 8.5 in (216 mm) |
Product Box Length | 4.25 in (108 mm) |
Product Box Width | 4.25 in (108 mm) |
Warranty | 1 Year Limited |
Advanced Moderate Easy
20-30 Minutes
Installation PDF
Cleaning Instructions
