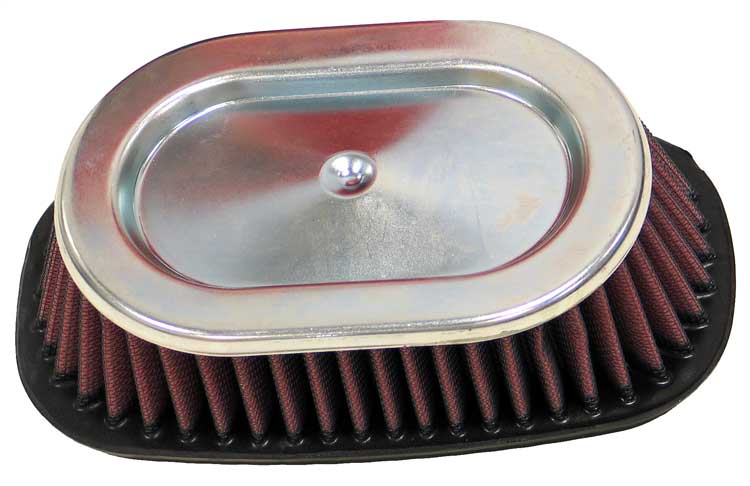

1990 Honda XR600R 600

- Designed to provide increased horsepower and acceleration
- Specifically developed for Off-Road, Motocross, ATVs, UTVs and Side by Sides
- Pleated cotton media provides a large filtration area offering low restriction, high-capacity and long service intervals
- Multiple layers of woven cotton gauze media offers excellent filtration
- Fits directly into OEM air box with application specific sealing bead ensuring a precise fit
- No fuel management modifications are required to obtain increased performance
- Washable & reusable, most are pre-oiled and ready to ride
- One Year Limited Warranty
Air Filter Shape | Oval |
Filter Material | Cotton Gauze |
Height | 2.5 in (64 mm) |
Inner Wire | No |
Inside Length | 6.125 in (156 mm) |
Inside Width | 2.75 in (70 mm) |
Outside Length | 7.375 in (187 mm) |
Outside Width | 4 in (102 mm) |
Top Style | Metal |
Top Material | None |
Flanges | None |
Package Contents | 1 Air Filter |
Package Quantity | 1 |
Warranty | 1 Year Limited |
Washable | Yes |
Product Style | Oval Air Filter |
Base Outside Length | 7.375 in (187 mm) |
Base Outside Width | 4 in (102 mm) |
Top Outside Length | 7.375 in (187 mm) |
Top Outside Width | 4 in (102 mm) |
Weight | 0.9 lb (0.4 kg) |
Filter Re-Oiling Amount | 0.45 oz (13 ml) |
Product Box Height | 9.06 in (230 mm) |
Product Box Length | 5.56 in (141 mm) |
Product Box Width | 4.56 in (116 mm) |
Advanced Moderate Easy
Screwdriver
5-10 Minutes
Installation PDF
Installation Instruction Sheet
- High performance design for outstanding filtration
- High-efficiency media with uniform pleats
- Oil filter design provides for a high rate of oil flow
- Ideal for high-end synthetic motor oil
Anti Drain Back Valve | No |
Bypass Valve | No |
Filter Material | High Flow Premium Media |
Gasket Material | Nitrile Rubber |
Height | 1.438 in (37 mm) |
Outside Diameter | 1.969 in (50 mm) |
PSI Relief Valve | Yes |
Removal Nut | No |
Style | Cartridge |
Thread Specification | N/A |
Product Style | Oil Filters |
Inside Diameter | 0.469 in (12 mm) |
Weight | 0.1 lb (0.1 kg) |
Product Box Height | 2 in (51 mm) |
Product Box Length | 2.19 in (56 mm) |
Product Box Width | 2.19 in (56 mm) |
Warranty | 1 Year Limited |
Advanced Moderate Easy
20-30 Minutes
