1988 Harley Davidson FXSTC Softail Custom 82 CI

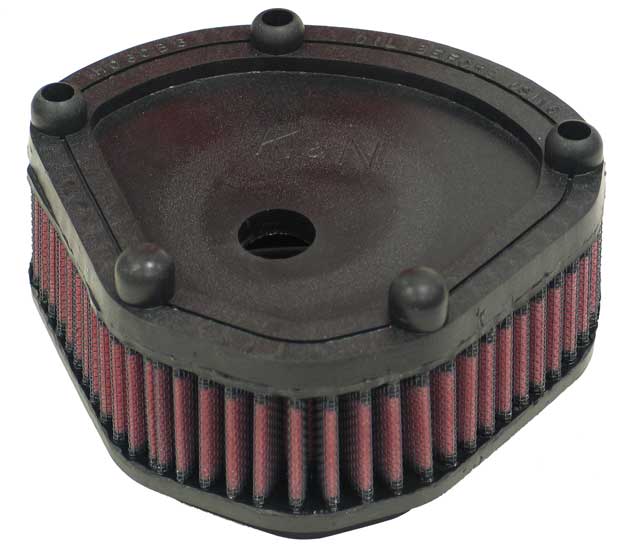

- Designed to provide increased horsepower and torque
- Pleated media provides a large filtration area offering long service intervals
- Multiple layers of woven cotton gauze media offers excellent filtration
- Application specific base seal and sealing bead
- Made in the USA for over 40 years
- Washable & reusable, pre-oiled and ready to ride!
- Million-Mile Limited Warranty
Air Filter Shape | Unique |
Height | 3.25 in (83 mm) |
Package Contents | 1 Air Filter |
Package Quantity | 1 |
Washable | Yes |
Product Style | Unique Air Filters |
Filter Material | Cotton Gauze |
Flanges | None |
Top Style | Rubber |
Top Material | None |
Weight | 1 lb (0.4 kg) |
Filter Re-Oiling Amount | 0.45 oz (13 ml) |
Product Box Height | 3.5 in (89 mm) |
Product Box Length | 6.31 in (160 mm) |
Product Box Width | 6.56 in (167 mm) |
Inner Wire | No |
Side A Length | 4.5 in (114 mm) |
Side B Length | 6.15 in (156 mm) |
Side C Length | 4 in (102 mm) |
Side D Length | 3 in (76 mm) |
Advanced Moderate Easy
Screwdriver
5-10 Minutes
Installation PDF
Installation Instruction Sheet

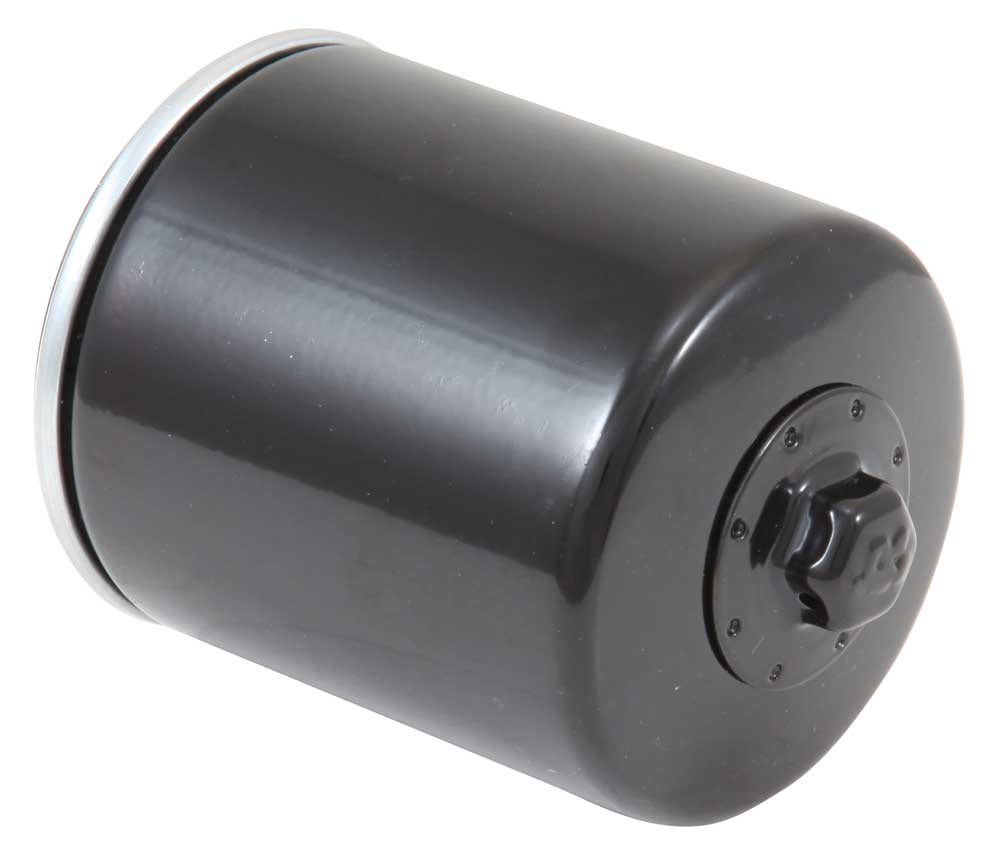

- O/E replacement oil filters for most cars, trucks, SUV's, motorcycles, & ATV's
- 17 mm exposed nut designed for easy oil filter removal
- Heavy duty construction for extreme conditions
- Anti-drain back valve (where applicable) eliminates dry starts, prevents oil from draining back into crankcase during engine shutdown
- Approved for racing use by MotoAmerica and the AMA
Anti Drain Back Valve | No |
Bypass Valve | Yes |
Filter Material | High Flow Premium Media |
Gasket Material | Nitrile Rubber |
Height | 3.938 in (100 mm) |
Outside Diameter | 2.938 in (75 mm) |
PSI Relief Valve | Yes |
Removal Nut | Yes |
Style | Canister |
Thread Specification | 3/4 In. 16 UNF |
Product Style | Oil Filters |
Weight | 0.8 lb (0.3 kg) |
Product Box Height | 4.25 in (108 mm) |
Product Box Length | 3.13 in (79 mm) |
Product Box Width | 3.13 in (79 mm) |
Removal Nut Size | 17 mm |
Warranty | 1 Year Limited |
Advanced Moderate Easy
20-30 Minutes

- O/E replacement oil filters for most cars, trucks, SUV's, motorcycles, & ATV's
- 17 mm exposed nut designed for easy oil filter removal
- Heavy-duty, chrome-plated canister handles extreme conditions
- Anti-drain back valve (where applicable) eliminates dry starts, prevents oil from draining back into crankcase during engine shutdown
- Approved for racing use by MotoAmerica and the AMA
Anti Drain Back Valve | No |
Bypass Valve | Yes |
Filter Material | High Flow Premium Media |
Gasket Material | Nitrile Rubber |
Height | 3.938 in (100 mm) |
Outside Diameter | 2.938 in (75 mm) |
PSI Relief Valve | Yes |
Removal Nut | Yes |
Style | Canister |
Thread Specification | 3/4 In. 16 UNF |
Product Style | Oil Filters |
Weight | 0.8 lb (0.4 kg) |
Product Box Height | 4.25 in (108 mm) |
Product Box Length | 3.13 in (79 mm) |
Product Box Width | 3.13 in (79 mm) |
Finish | Chrome |
Removal Nut Size | 17 mm |
Warranty | 1 Year Limited |
Advanced Moderate Easy
20-30 Minutes

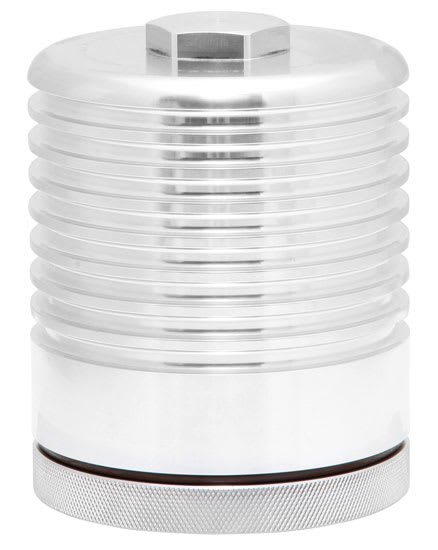

- Lasts the lifetime of your vehicle under normal vehicle operating conditions
- Stainless Steel Micro-Screen Filtration
- Reusable Oil Filter
- Billet Aluminum Housing
- Embedded Neodymium Magnets
Anti Drain Back Valve | No |
Bypass Valve | Yes |
Filter Material | Stainless Mesh |
Gasket Material | Viton Rubber |
Height | 3.625 in (92 mm) |
Outside Diameter | 3 in (76 mm) |
PSI Relief Valve | 16 |
Removal Nut | Yes |
Style | Canister |
Thread Specification | 3/4 In. 16 UNF |
Product Style | Oil Filters |
Weight | 1.3 lb (0.6 kg) |
Product Box Height | 6 in (152 mm) |
Product Box Length | 4 in (102 mm) |
Product Box Width | 4 in (102 mm) |
Warranty | 1 Year Limited |
Advanced Moderate Easy
20-30 Minutes
Installation PDF
Cleaning Instructions
